Whether in the construction, demolition, mining, or waste management industry, chances are you've seen a trommel in action. This versatile machine separates and screens materials of different sizes, making it an essential tool with several applications.

But what exactly is a trommel, and how does it work?

A trommel, a rotary or drum screen, is a cylindrical machine with mesh or perforated screens that separate materials by size. The material enters the drum through an inlet, and its rotational motion lifts and tumbles it, allowing the smaller particles to pass through the holes in the screen while the larger particles are retained.

Trommel Screen: Components and Design

A trommel screen typically consists of a machine with a cylindrical drum, lifting bars or a helix, tracks or tires, grizzly bars, and brushes. These components work together to efficiently separate materials based on size and remove unwanted debris.

• Cylindrical Drum

The most essential part of a trommel is its cylindrical drum. This is where the material enters and rotates, allowing for efficient screening. The drum size can vary in diameter and length depending on the processed material and the desired output. Additionally, the variable rotation speed can be adjusted to dial in the best speed for each application.

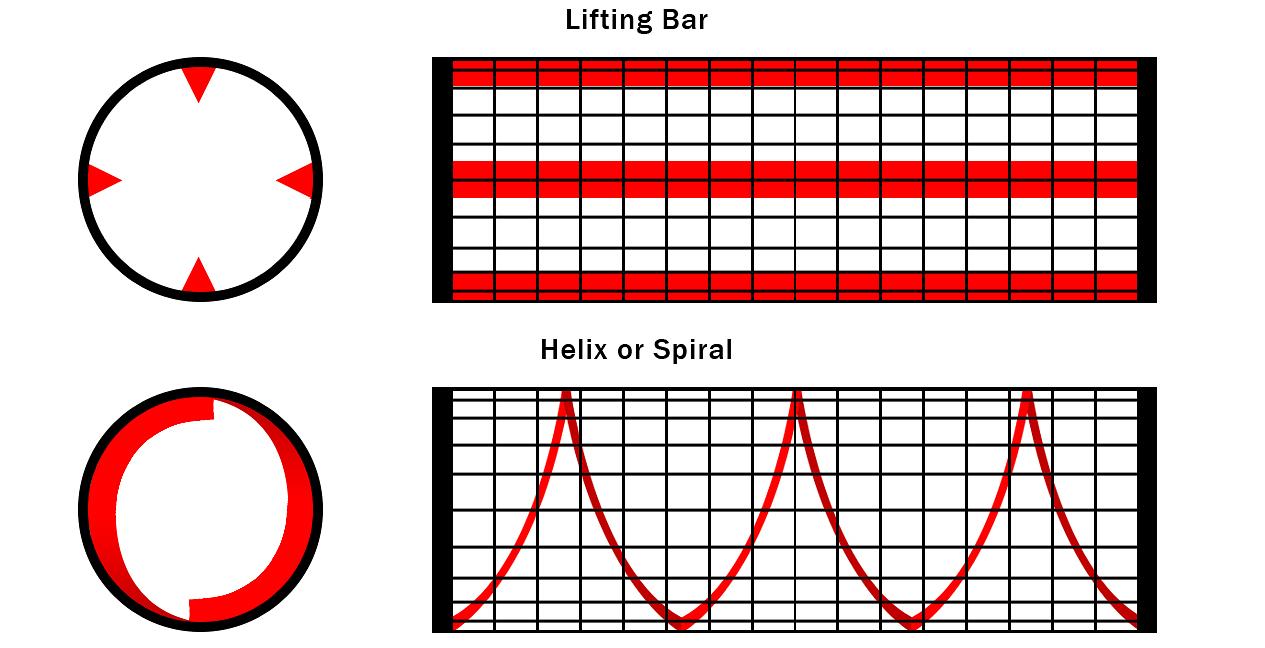

• Lifting Bars and Helix

Inside the trommel drum, lifting bars help lift up clumps of material and prevent them from clogging the screen. This is particularly important when working with wet or sticky materials. A helix incorporates a screw weld to the interior of the drum. This allows the material to go through the trommel with less agitation than the lifting bars.

• Tracks or Tires

Trommels can be equipped with either tracks or tires, depending on the terrain and application.

Tracks are ideal for rough and uneven ground, while tires provide better mobility on smoother surfaces. Both options ensure even weight distribution for stable operation.

• Grizzly Bars

These are a set of large steel bars placed above the feeder hopper to separate larger materials out before it enters the trommel. They are particularly useful when working with rocks or construction debris.

• Brushes

During the screening process, high moisture material can clog the drum's mesh, affecting its efficiency. To prevent this, stiff-bristled brushes are added to the exterior of the drum to clean and remove dirt or debris as it rotates.

• Water Jets

In mining and gold applications, high-pressure water jets can be added to the drum to assist with the process. For example, in gold mining, jets can help break apart large lumps of clay and mud that may contain valuable gold particles. Water jets can also be used for dust suppression to meet health and safety requirements.

Types of Trommel Screens

Various types of trommels are available, each designed for different materials and applications.

Some common types include:

• High Moisture Trommel

This type of trommel is used in mineral processing and commonly seen in gold and gem processing. Adding water during the screening process helps break down larger chunks and improve separation efficiency.

• Gravel Trommel (Rip-Rap Trommel)

Gravel trommels are designed to handle larger materials and are commonly used in mining and construction industries. They have a larger, heavier duty drum and can easily separate rocks, gravel, and other large debris.

• Wood Chip Trommel

Like gravel trommels, wood chip trommels are designed to offer small and larger mesh to effectively screen out wood chips while retaining smaller particles like sawdust.

• Municipal Waste Trommel

These trommels separate waste materials, such as domestic waste, into different sizes for recycling or disposal.

Applications of Trommel Screens

Trommels have a wide range of applications and are used in various industries, including:

• Mining

Trommels screen minerals such as gold, iron ore, and coal in the mining industry. They effectively separate valuable particles from other materials for further processing.

• Waste Management

Trommel screens are an essential tool in waste management for separating different types of waste and recycling materials. They are commonly used in municipal solid waste, construction, and demolition waste facilities.

• Composting

Compost trommels are designed to handle organic materials such as food scraps, garden waste, wood waste, and manure. The process helps create a more uniform compost product for use in agriculture or landscaping. This topsoil is rich in nutrients vital for plant growth, and its fine particle size allows water to drain well, preventing root rot.

• Construction

Trommel screens separate soil and aggregates for various construction projects. They can also recover and reuse materials such as gravel or topsoil.

• Topsoil

Screening of topsoil is essential to rescue organic matter like sticks and rocks from the material.

Advantages of Using a Trommel Screen

Using a Trommel screen in your operations can provide numerous benefits, including:

• Increased Efficiency

Trommels are highly efficient machines that can screen large volumes of material quickly. This not only saves time but also reduces labor costs.

• Versatility

Trommels are versatile machines that can handle a wide range of materials, including high moisture and dry materials, making them ideal for various applications.

• Reduced Downtime

Thanks to their durable design and simple maintenance procedures, trommels have minimal downtime, ensuring continuous operation and increased productivity.

• Cost-Effective

Compared to other screening equipment, trommels are a more cost-effective option. They have lower initial costs and require less maintenance, making them a practical choice for many businesses.

The Trommel Screening Process

The process of trommel screening is a meticulously designed operation aimed at enhancing the separation and refinement of materials. Here's a more detailed overview of the process:

1. Initial Material Channeling: Materials are first introduced into the system through a hopper, which feeds the material into the opening of the trommel drum. This is where the primary separation process begins.

2. Tumbling and Air Integration: Once inside the screening drum, materials undergo a tumbling action. This ensures a thorough mix and intermixes air into the substance. The incorporation of air is particularly beneficial for drying moist or sticky materials, thereby improving the overall efficiency of the separation process.

3. Breakdown and Separation: The tumbling action inside the rotating drum includes dragging and dropping motions as the material ascends along the drum's side. This effectively breaks down larger clumps into smaller components. Concurrently, the finer particles can sift through the mesh, successfully separating them from larger pieces.

4. Rotation Speed and Material Agglomeration: Optimal rotation speed is crucial. If the trommel drum rotates too slowly, materials can accumulate at the bottom, forming bulky clusters. This is especially common with moist materials, which tend to stick together and to larger objects like stones.

5. Screened Output Processing: After screening, the output is conveyed from trommel drums to a lower conveyor belt. This belt then sorts the fines into a separate pile for storage, ensuring that the screened materials are efficiently organized for further processing or disposal.

Trommel machines exhibit greater mechanical durability than vibrating screens, enabling them to withstand prolonged mechanical strain. Nevertheless, vibrating screens can screen more material simultaneously than trommel screens.

Selecting the Right Trommel Screen

Choosing the optimal trommel screen for your operation demands thoughtful evaluation of various factors to guarantee efficiency, effectiveness, and cost-effectiveness. Here are the crucial elements to take into account:

• Material Characteristics

Understand the properties of the material you intend to process. This includes size, moisture content, and the presence of contaminants. Different materials may require specific trommel designs or features, such as a wet trommel for materials with high moisture content.

• Desired Output

Identify the desired output size and volume. Knowing the size of the materials you need to screen will help determine the appropriate drum and screen mesh sizes for your trommel.

• Capacity Requirements

Assess your processing volume needs. Trommels come in various sizes and capacities, so selecting a model that can handle your material throughput without frequent stoppages or overloading is important.

• Space and Mobility

Consider the space available for the trommel and whether you need a stationary or mobile unit.

Some operations might benefit from portable trommels that can be easily moved and set up in different locations.

• Efficiency and Cost

Evaluate the trommel's efficiency in terms of energy consumption and operational costs.

Additionally, consider its durability and maintenance requirements to ensure it is cost-effective in the long run.

• Additional Features

Look for trommels with additional features that can enhance the process, such as adjustable rotation speeds, various mesh sizes, and cleaning mechanisms like brushes or water jets to prevent screen clogging.

Selecting the ideal Trommel screen involves balancing these factors, tailored to meet your operation's specific needs. Consulting with trommel experts like GrinderCrusherScreen can provide valuable insights and recommendations based on your requirements.

The Future of Trommel Screening: A Look Ahead

As we look to the future of trommel screening technology, innovation, and sustainability will drive its evolution. Design and material science advancements will likely yield more efficient, durable, and environmentally friendly Trommel screens.

GrinderCrusherScreen can anticipate integrating smarter technologies to enhance operational efficiencies, reduce waste, and enable more precise material separation. Furthermore, the industry's movement towards greener practices may foster the development of more effective trommels in recycling and waste management and minimize carbon footprints.

The future holds a promise for Trommel screening technology that is not only ahead of its time in efficiency and effectiveness but also aligns with global sustainability goals, making it a pivotal piece in the machinery of tomorrow’s material processing and management strategies.
